2-24 Chapter 2: Hardware information
2.7.2 Internal connectors

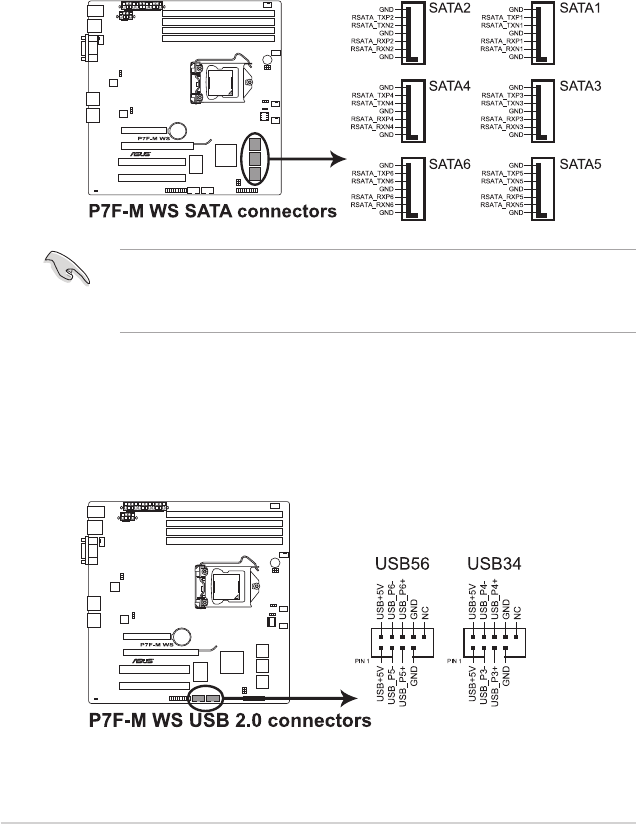

1. Serial ATA connectors (7-pin SATA1–4 [Red], 7-pin SATA5–6 [Black])
Supported by the Intel
®
3420 chipset, these connectors are for the Serial ATA
signal cables for Serial ATA hard disk drives that allows up to 3Gb/s of data
transfer rate.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1,
RAID 10, or RAID 5 conguration.
• The actual data transfer rate depends on the speed of Serial ATA hard disks
installed.
• The SATA connectors do not support SATA cables with latch.
2. USB connector (10-1 pin USB34, USB56)
These connectors are for USB 2.0 ports. Connect the USB module cables to
connectors USB34 and USB56, then install the modules to a slot opening at
the back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
