2-20 Chapter 2: Hardware information

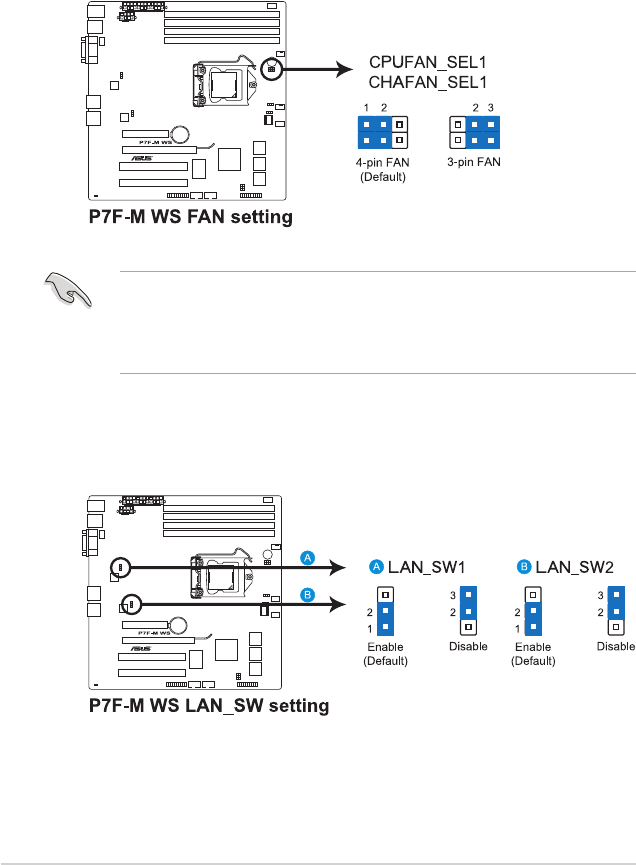

2. CPU Fan and Chassis Fan control setting

(3-pin CPUFAN_SEL1, CHAFAN_SEL1)

These jumpers allow you to switch for fan pin selection. The CPUFAN_SEL1

jumper is for the CPU fan control and the CHAFAN_SEL1 jumper is for the

front fans and rear fans control. Set to pins 1–2 when using 4-pin fans or pins

2–3 when using 3-pin fans.

• If you use a 4-pin fan but set the jumper to pin 2-3, the fan you installed

may not work.

• If you use a 3-pin fan but set the jumper for a 4-pin fan, the fan control will

not work and the fan you installed will always run at full speed.

3. LAN controller setting (3-pin LAN_SW1, LAN_SW2)

These jumpers allow you to enable or disable the onboard Intel

Intel

82574LGigabit LAN controllers. Set to pins 1-2 to activate the Gigabit LAN

feature.
